DWYER

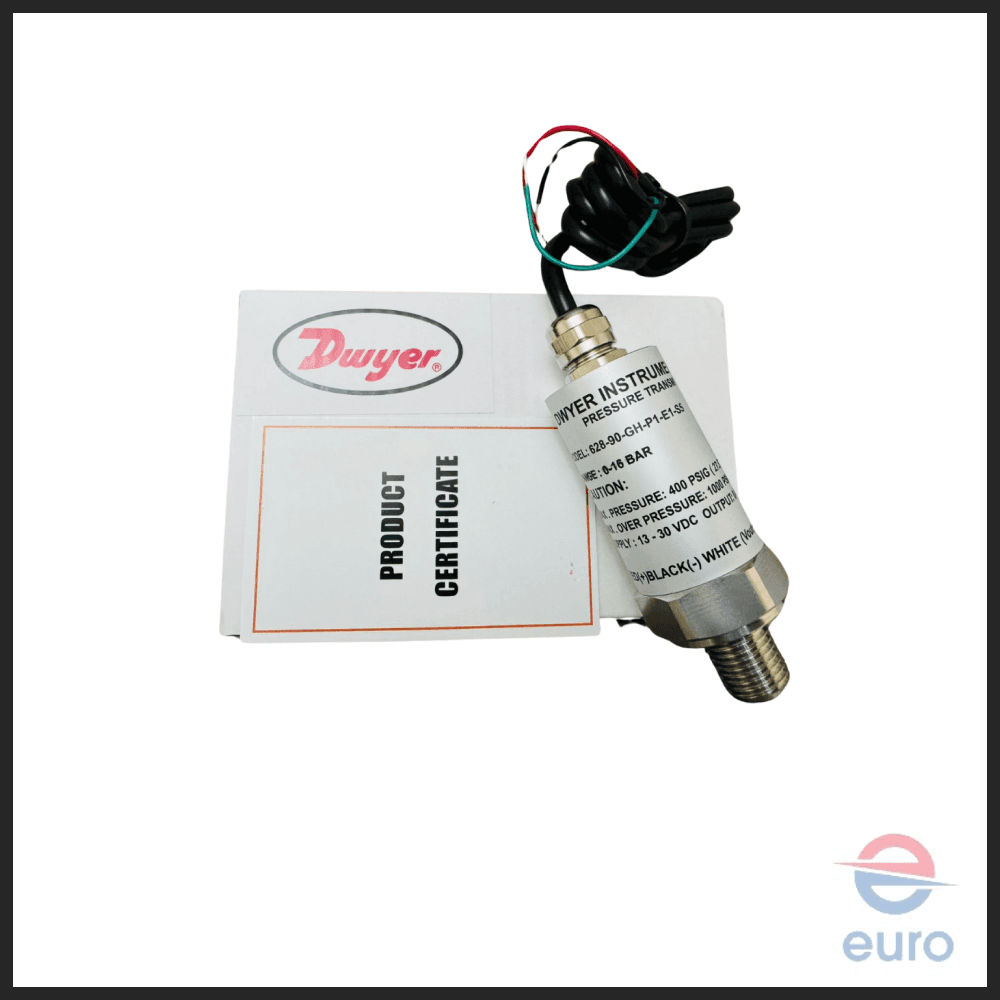

Dwyer Pressure Transmitter 0-16 BAR, 628-90-GH-P1-E1-S5
- **Model**: 628-90-GH-P1-E1-S5
- **Pressure Range**: 0-16 BAR
- **Supply Voltage**: 13-30 VDC
- **Output**: 0-16V
- **Connection**: 1/4" male NPT
- **Cable Length**: 3FT
- **Protection Rating**: NEMA 4X IP68
- **Max Pressure**: 400 PSIG (27.57 BAR)
- **Max Overpressure**: 1000 PSIG
Description
**DWYER** pressure transmitter with **0 to 16 BAR** range, **supply voltage: 13-30 VDC**, **model**: 628-90-GH-P1-E1-S5. **Output**: 0-16V. Features **1/4" male NPT**, **3FT cable**, and **NEMA 4X IP68** protection. **Maximum pressure**: 400 PSIG (27.57 BAR). **Maximum overpressure**: 1000 PSIG. **Code**: 62890GHP1E1S5.
Specifications
| Brand | DWYER |
|---|---|
| SKU | 628-90-GH-P1-E1-S5 |
| Category | Pressure Transmitter |
