DWYER

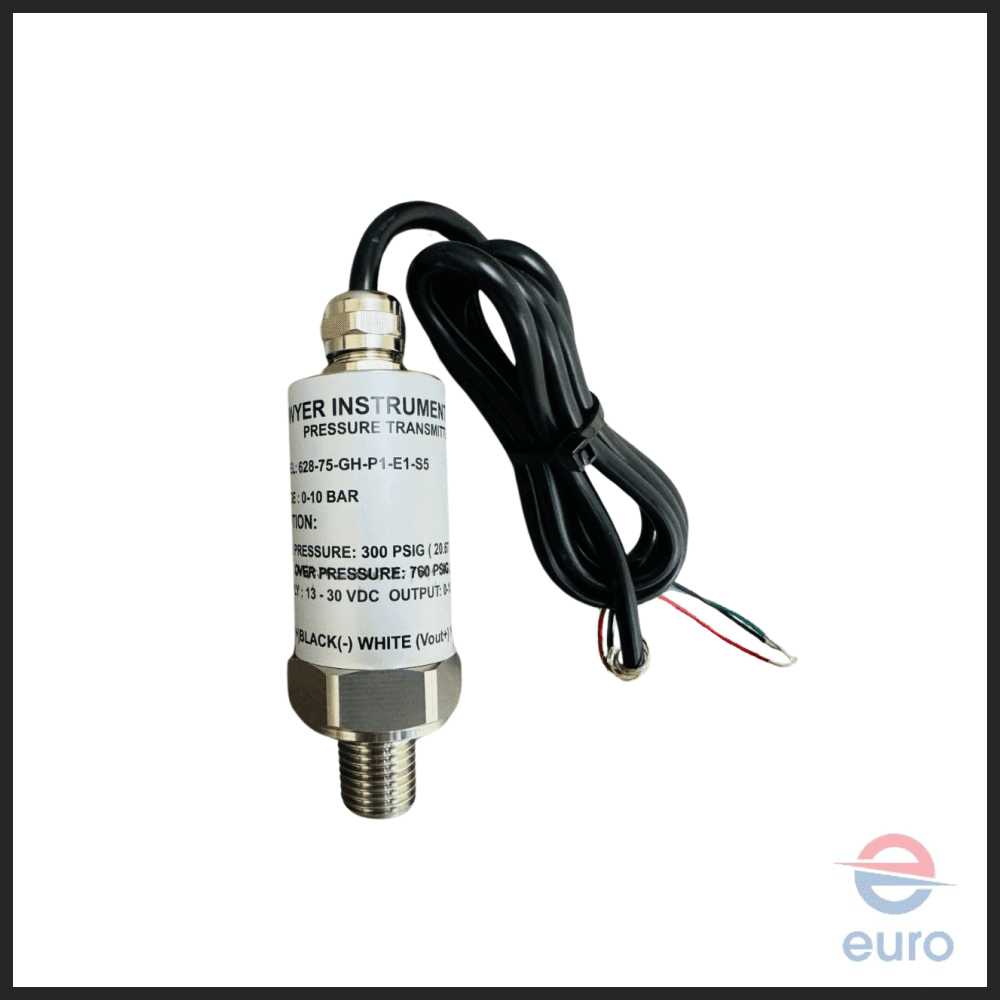

Dwyer Pressure Transmitter 0-10 BAR, 628-75-GH-P1-E1-S5
- **Model**: 628-75-GH-P1-E1-S5
- **Pressure Range**: 0-10 BAR
- **Input Voltage**: 13-30 VDC
- **Output**: 0-10V
- **Connection**: 1/4" male NPT
- **Cable Length**: 3FT
- **Protection Rating**: NEMA 4X IP68
Description
**DWYER** pressure transmitter with **0 to 10 BAR** range, **input: 13-30 VDC**, **model**: 628-75-GH-P1-E1-S5. **Output**: 0-10V. Features **1/4" male NPT**, **3FT cable**, and **NEMA 4X IP68** protection. **Maximum overpressure**: 760 PSIG. **Code**: 62875GHP1E1S5.
Specifications
| Brand | DWYER |
|---|---|
| SKU | 628-75-GH-P1-E1-S5 |
| Category | Pressure Transmitter |
