HONEYWELL

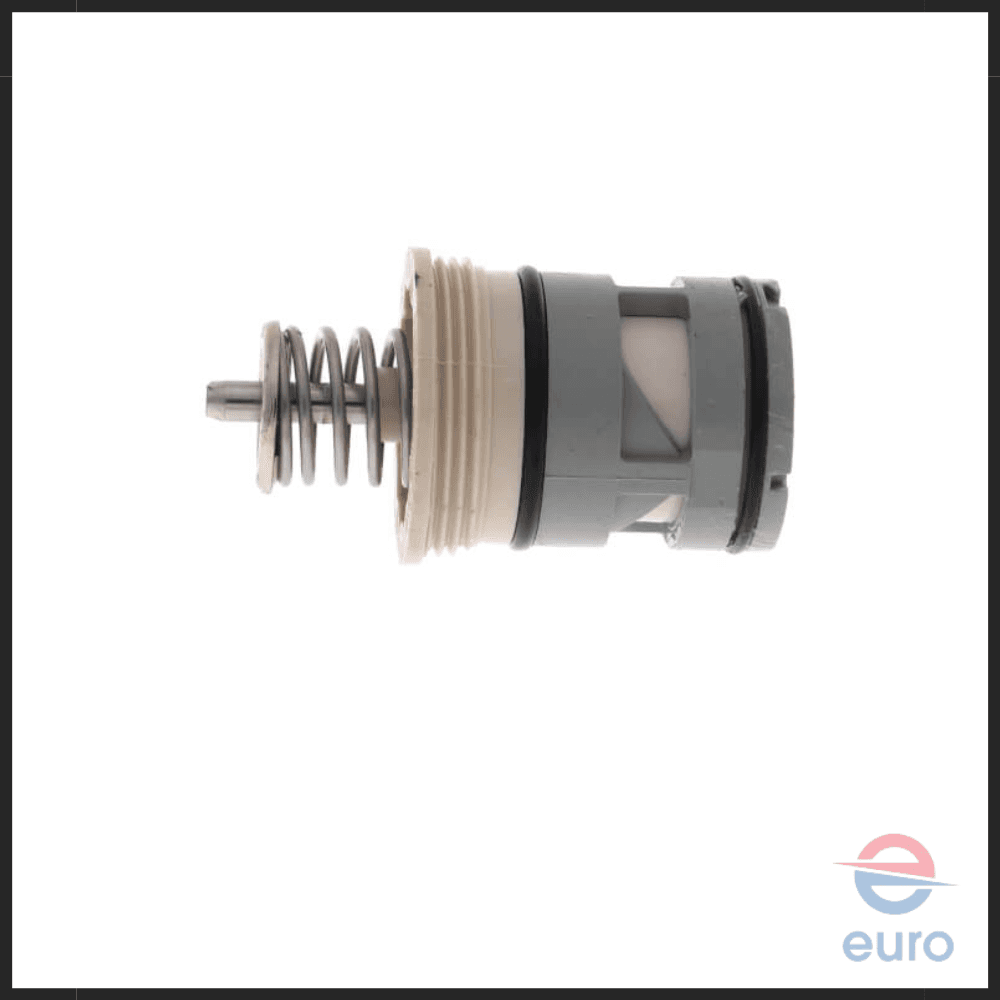

HONEYWELL Valve Cartridge VCZZ1100
- Use VCZZ1100 with two-way valves.
- Use VCZZ1100 with three-way valves.
- Quick and easy replacement of moving parts.
- Restores valve to factory-new conditions.
- Using different cartridge changes CV and flow characteristic of body.
- Identical cartridge can have different CV in bodies of different sizes.
Description
The cartridges in VC-Series valves determine the flow rate and performance of the valve. Replacing the cartridge returns the valve to its original factory settings. 1000-series cartridges fit all 2-way VC bodies. To ensure trouble-free operation, the following installation practices must be followed:
- Flush the system initially.
- Treat the water chemically.
- Install a 50-micron (or finer) side stream filter.
- Remove all filters before flushing.
- Do not use petroleum-based, mineral oil-based, hydrocarbon-based, or ethylene glycol acetate-based additives, solder flux, or wetted materials.
- Dilute diethylene glycol, ethylene glycol, and propylene glycol (antifreeze solutions) with at least 50% water before using them.
Specifications
| Brand | HONEYWELL |
|---|---|
| SKU | VCZZ1100 |
| Category | Cartridge |
| Weight | 0.3 kg |
| Valve Type | Replacement Cartridge for VC Series |
| Controlled Fluid | Water w/ max. of 60% Glycol\, not suitable for steam |
| Flow Characteristic | Linear |
| Stem Travel | 0.4" |
| Material (Stem) | Stainless Steel |
| Material (Cartridge) | EPDM\, Ryton & Noryl Plastic |
| Includes | Two-way VC valves |
